Site. 15,000 sq. ft Home. 500 sq. ft
____________________________________________________________________________________________________________________________________________________________
The WORKFORCE 16 Home Prototype being developed by the UDBS AR HOME LAB aspires to address regional challenges in Northwest Arkansas, specifically those faced by essentially employed residents earning $16.00 to $18.00 per hour. The studio strives to make home ownership a reality for first time homebuyers in this economic strata, and by extension, promote the ability for associated wealth building. The implementation of three pilot demonstration homes are planned to break ground in early Summer 2024. This project was done as a group effort throughout several semesters. However, all graphic work shown below was created individually.

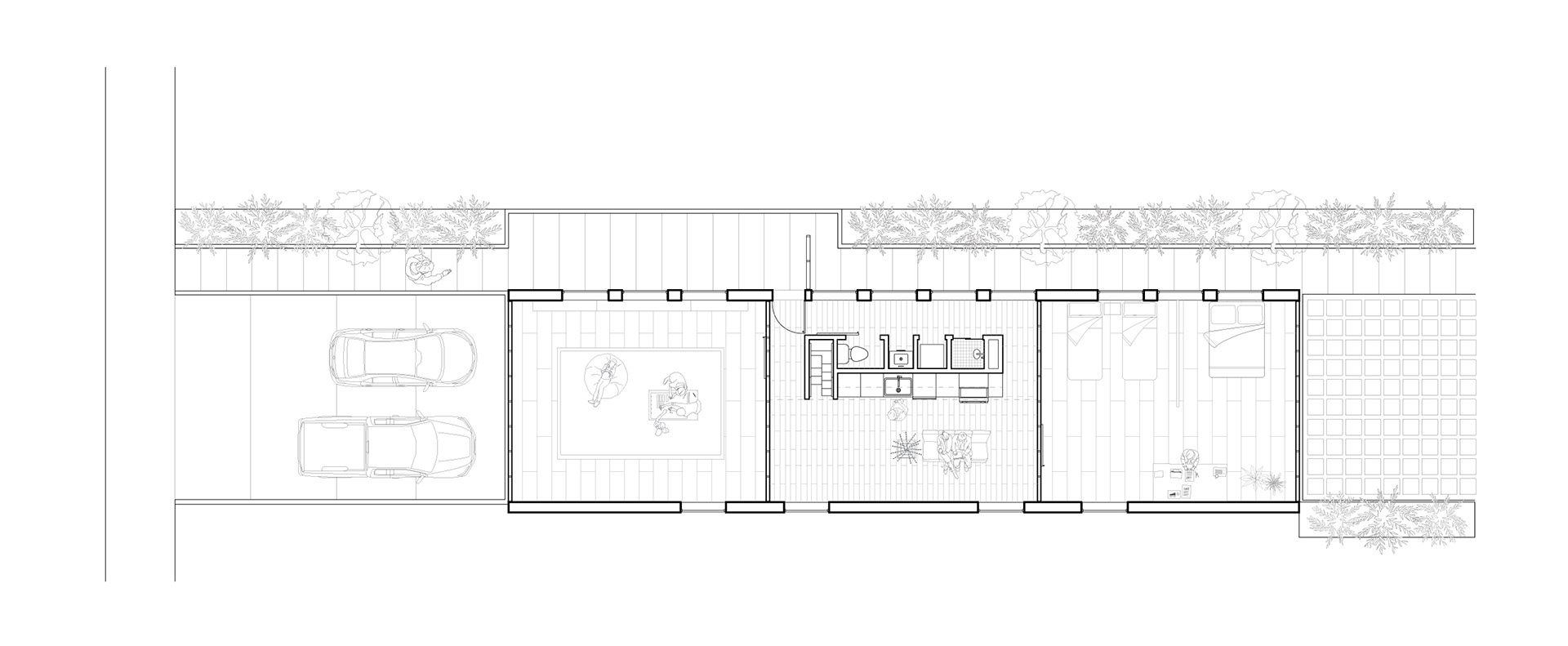

Ground Floor Plan

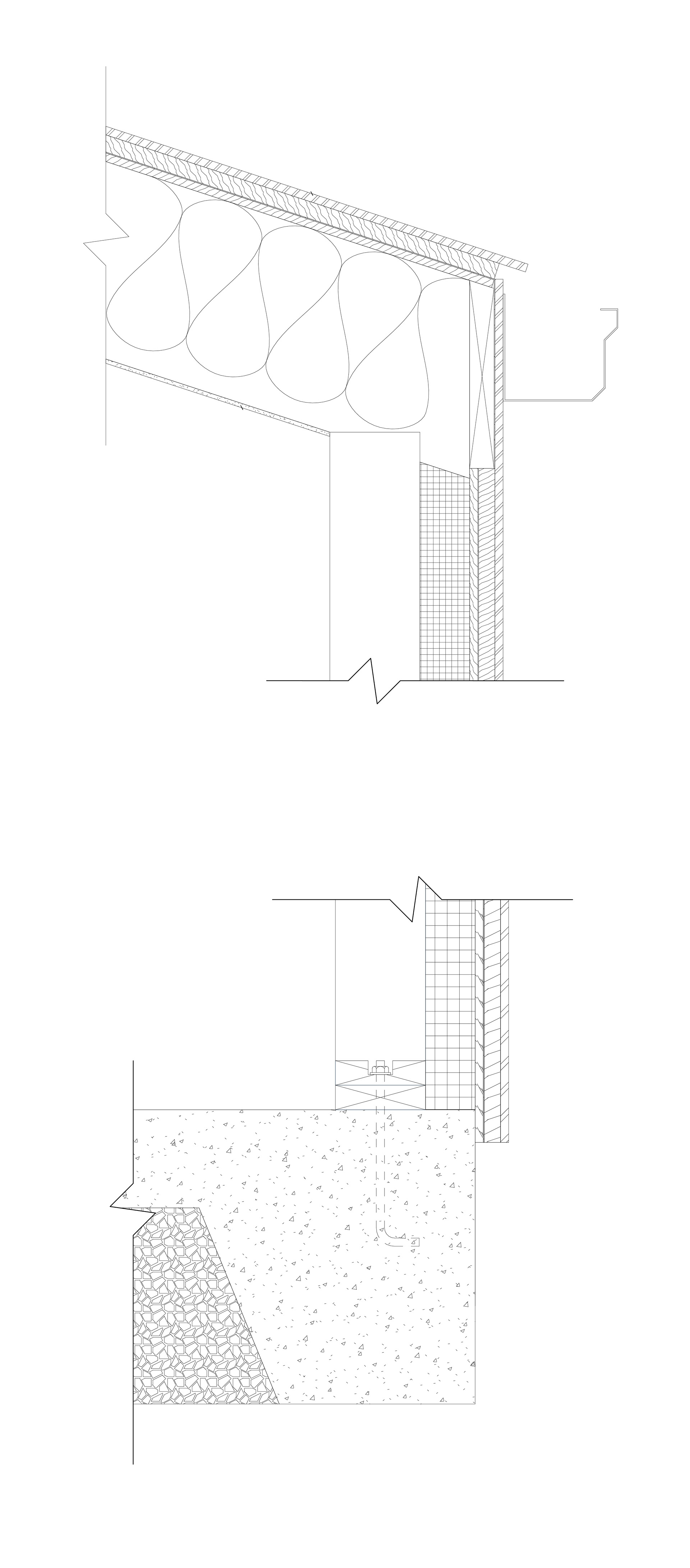

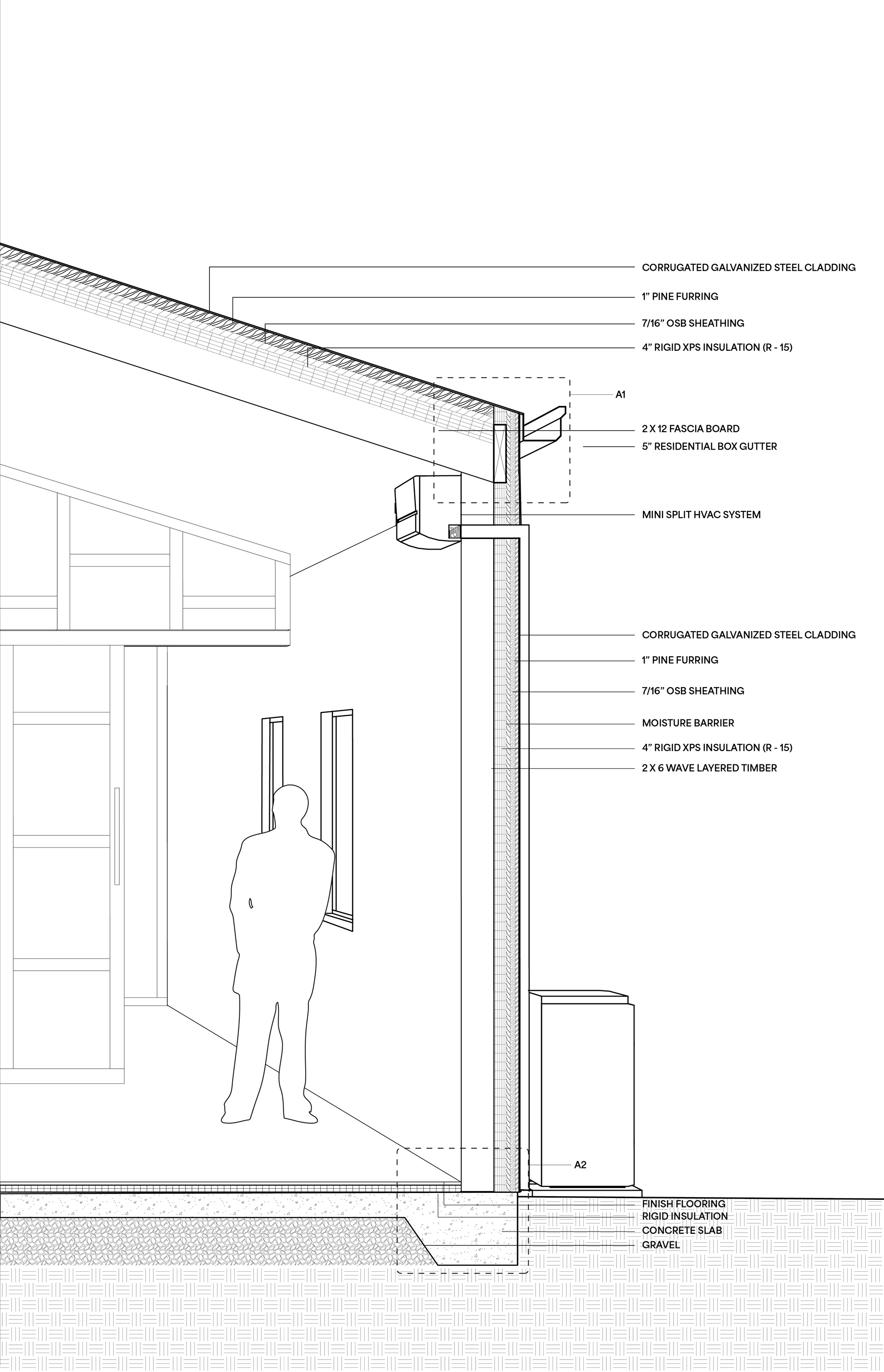

Section & Construction Detail Drawings

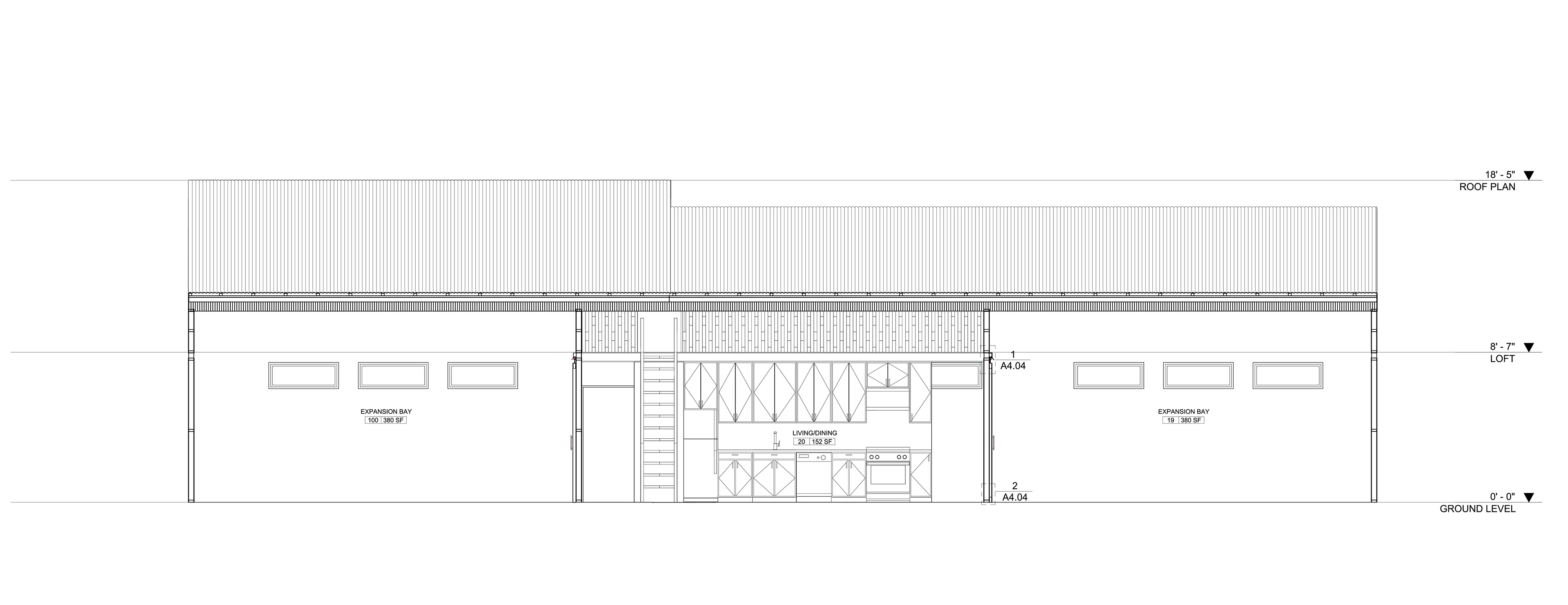

Longitudinal Section
Interior Rendering from Expansion Bay
Exterior Perspective
Mockup Renderings

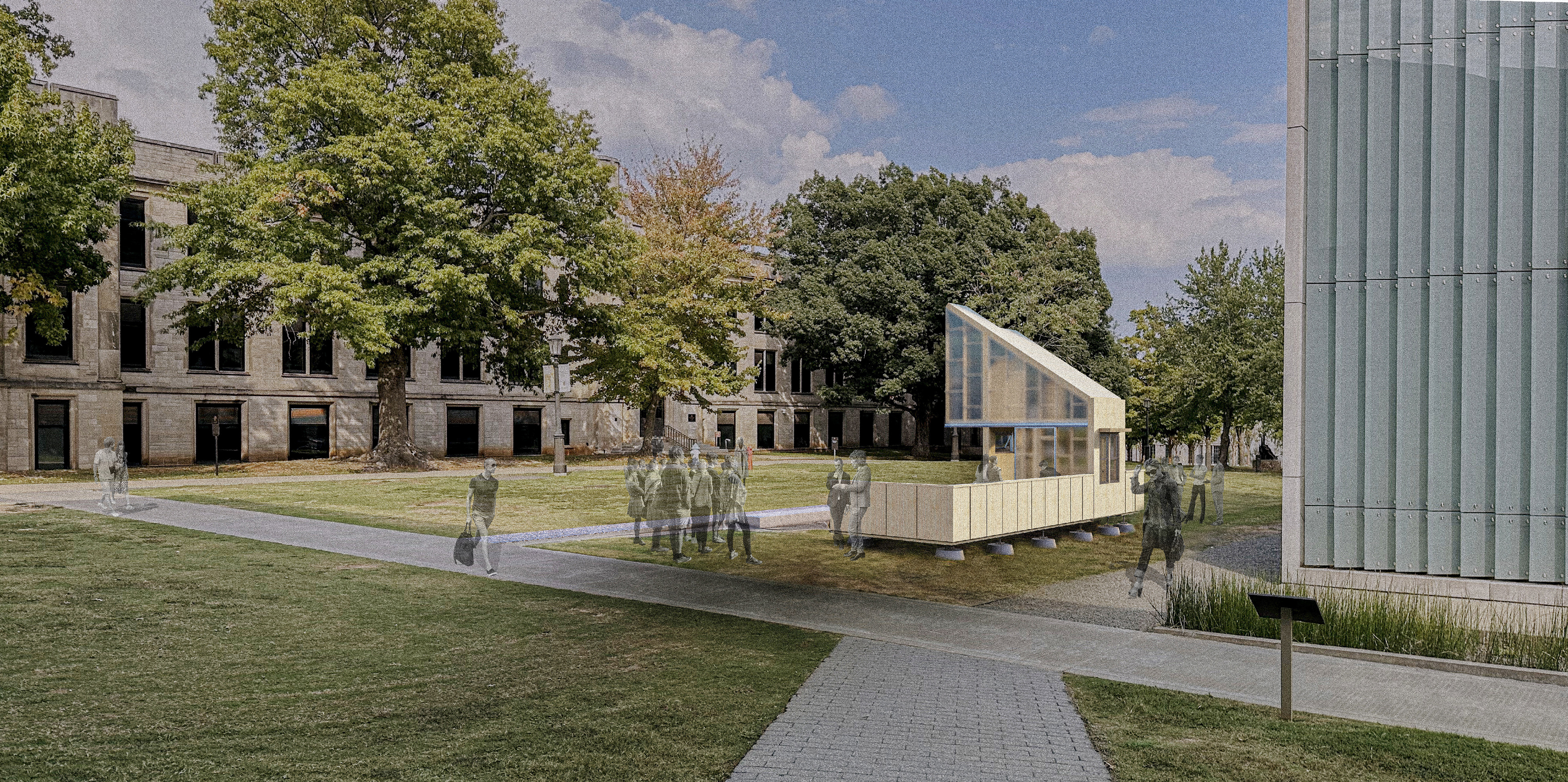

Full-Scale Mockup on University of Arkansas Campus
